Instructions:

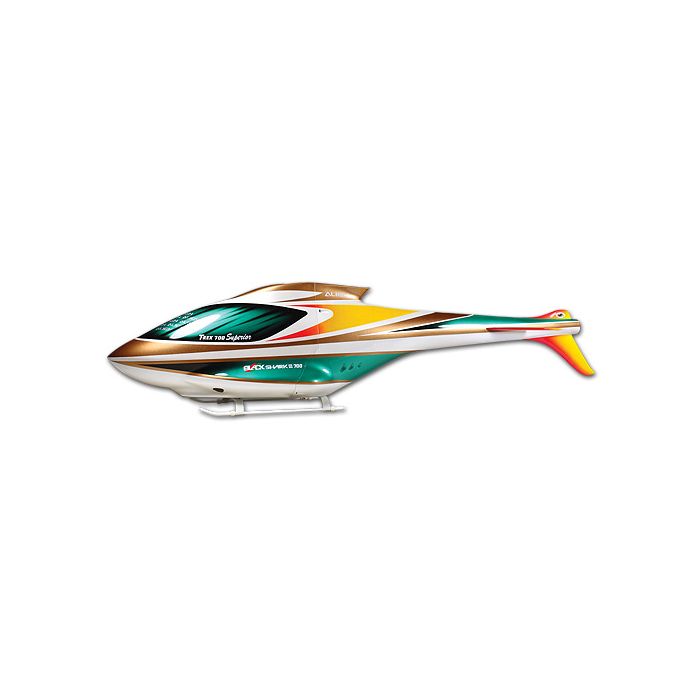

●The Black Shark III 700 fuselage is the result of a joint venture between Align and legendary Japanese designer Kurokawa Yoshihide. This fuselage is designed specifically for T-Rex 700E F3C in competitions. Contrary to other older fuselage designs where assembly and fitting can be difficult, this fuselage can be assembled easily and quickly with the included hardware.
●The aerodynamic lines of the shark shaped Black Shark III 700 minimizes wind resistance, while stabilizing the helicopter during F3C flight routines and advancing the great performance of T-Rex 700E F3C even higher, achieving total dominance in class P and F of F3C. Custom designed floating fuselage mounting system effectively reduce helicopter vibration and minimize resonance effect; The light weight fiberglass and carbon fiber construction weights only 520g, maintaining the optimal power to weight ratio of the helicopter; Colorful paint scheme ideal for visibility while in the air; Unique quick release design of the fuselage for battery access with removal of just 4 screws; Finally, a low CG landing gear system not only reduce wind resistance during flight, but also contributes to the extraordinary style of Black Shark III 700. This master created fuselage is not to be missed for those who owns a T-Rex 700E.

Features:
●Designed specifically for F3C competitions. Achieve perfect harmony between fuselage and T-REX 700F3C
●Unique shark shape which minimizes wind resistance for F3C flight and stabilize the helicopter, allows contestants to excel in static maneuvers as well as superior tracking performance, achieving total dominance of P and F classes in F3C competitions.
●Floating fuselage mounting design to effectively minimize vibration and resonance, achieving even more stable flight.
●Fiberglass and carbon fiber construction to bring the weight down to mere 520g. Equipped with complete hardware for ease of assembly.
●Dedicated low CG landing gear painted in white color, minimizing wind resistance during flight and stabilizing helicopter landing.
●Quick fuselage removal design, battery access is achieve with removal of only 4 screws.
●Colorful paint scheme with 3D elements for optimal visibility during flight.

Specification

●Body length:1422mm
●Body width:235mm
●Body high:278mm
●Weight:Approx. 520g

Accessory

●Black Shark Ⅲ 700 Fuselage andtimes; 1
●Tail Torque Tube Unit andtimes; 1
●Metal Tail rotor control arm andtimes; 1
●Linkage ball C(M2x4) andtimes; 1(andPhi;5x9mm)
●Rear(L) Frame mounting block andtimes; 1
●Rear(R) Frame mounting block andtimes; 1
●Front Frame mounting block andtimes; 1
●Rear Frame mounting block andtimes; 1
●Front brace andtimes; 2
●Rear brace andtimes; 2
●Frame Mount andtimes; 1
●Front Frame anti-vibration mount andtimes; 1
●Rear Frame anti-vibration mount andtimes; 1
●Magnet andtimes; 2(andPhi;8x3mm)
●700N Main Rotor Housing Jig andtimes; 1
●700 Main Rotor Housing Jig andtimes; 1
●andPhi;2.5Hand drill andtimes; 1
●M3 Tap andtimes; 1
●Landing skid andtimes; 2
●Skid pipe andtimes; 2
●Skid pipe end cap andtimes; 4
●Landing Skid Nut andtimes; 4
●Aluminum collar andtimes; 4
●Tail Boom mount foam andtimes; 1
●Tail Boom anti-vibration foam andtimes; 1
●Front frame anti-vibration foam andtimes; 2
●Rear frame anti-vibration foam andtimes; 2
●Frame mount foam andtimes; 1
●Socket collar screw andtimes; 1(M3x16mm)
●Washer andtimes; 2(andPhi;3xandPhi;4.8x0.3mm)
●Socket button head screw andtimes; 1(M4x5mm)
●Socket screw andtimes; 1(M3x14mm)
●Socket screw andtimes; 10(M3x6mm)
●Socket screw andtimes; 14(M3x8mm)
●Socket collar screw andtimes; 4(M3x22mm)
●M3 washer andtimes; 4(andPhi;8xandPhi;3x1mm)
●M3 Set screw andtimes; 4(M3x4mm)
●Special Washer andtimes; 2(andPhi;3xandPhi;8x2mm)
