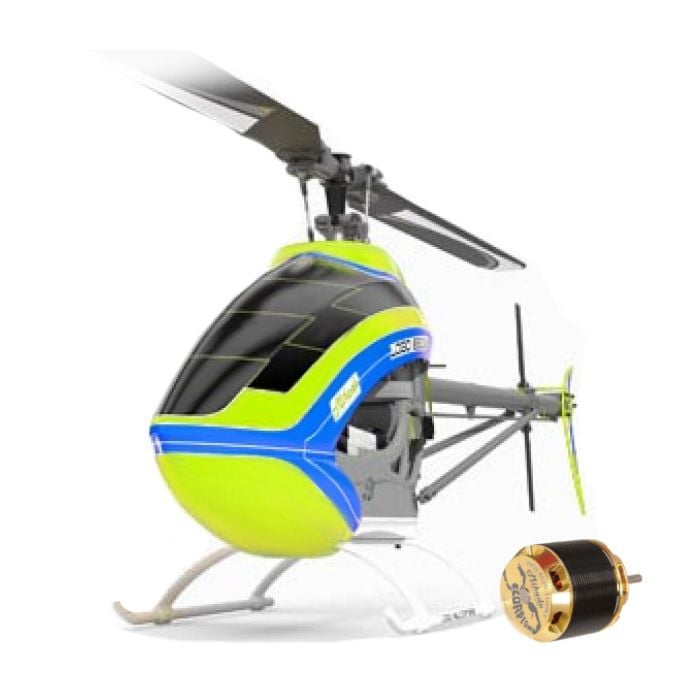

Mikado LOGO 690 SX-V2 Scorpion Motor Combo 05498

Mikado LOGO 690 SX-V2 Scorpion Motor Combo : 05498

The new LOGO 690 SX from Mikado is a cross-over model, combining the best of 600 and 700 size helicopters. This makes for extraordinary flight performance.

• LOGO 690 SX—a 700 size heli with a weight of just 4.8 kg (12S-5,000)
• light und durable chassis fiberglass reinforced frame with battery quick release system
• for 12S Lipo battery, 4,000 mAh to 5,000 mAh
• aluminum swashplate with new geometry for quicker cyclic response
• robust tail drive via HTD-belt with aluminum drive pulleys
• stronger blade grips with Ø 5 mm blade grip bolt
• stronger free wheel for higher torque
• additional aluminum/carbon battery tray
• reinforced clamp ring for main rotor shaft
• herringbone main gear makes for smooth sound
• extra-stiff carbon tail boom brace
• new airbrushed chassis cover lets you identify the flight attitude of the heli more easily
• glass-fiber airbrushed canopy with new look

Specification

• Rotor diameter : 1,550 mm
• Rotor blades : 690 mm
• RTF weight : 4.8 kg
• recommended batterie : 12S Lipo (4.000-5.000 mAh)
• Main gear ratio : 1:7.06
• Tail gear ratio : 1:4,76
• Main Gear size : 106 Module 1
• batterie slot : 58 x 55 x 330 mm
• Length : 1,340 mm
• Height : 390 mm
• Width : 330 mm

Content

• Kit : Kit
• Accessories : Anti Static Kit
• Manual : Illustrated Manual
• Blades : Carbon 690 mm
• Tail Blades : Carbon 105 mm
• Motor : Scorpion HK 4525-370 kV, Mikado Edition
• Motor pinion : 15 teeth
