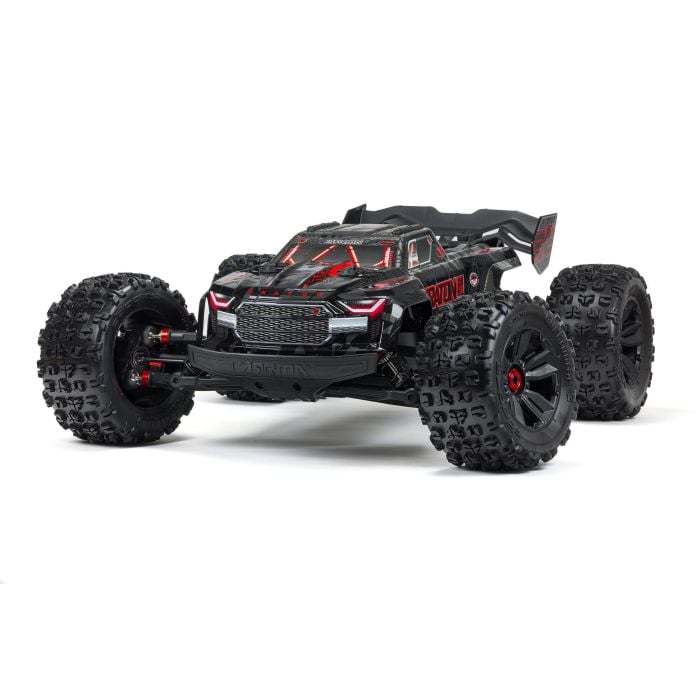

Arrma Kraton 8S EXB BLX 1/5 4X4 RTR Brushless Monster Truck - ARA5808V2T1
Overview
Target User Level: Advanced Large-Scale Bashers
The Kraton 1/5 8S EXB is the largest ready-to-run monster truck Arrma builds. It combines an 8S LiPo-capable Spektrum brushless system with EXtreme Bash (EXB) hardware fitted throughout, giving it 60+ mph capability and the structural strength to survive landing from it.
Product Description
This is the Kraton 8S rebuilt around durability. The 8S-capable Spektrum power system is headed by a 5687 Firma 1100Kv brushless motor measuring a full 56mm across, producing around 10% more torque than the previous Kraton 8S RTR motor, and paired with an updated Firma 160A V2 Smart ESC for cleaner throttle response. Steering comes from a Spektrum S6510 steel-gear servo delivering 820 oz-in at 8.4V, close to 50% more than the servo it replaces, backed by Spektrum AVC stability control in the SR6200A receiver. Underneath sits a 5mm 7075-T6 laser-etched EXB aluminium chassis plate, an EXB red-anodised aluminium front brace mount and an impact-absorbing EXB front bumper, with all-metal differential outdrives, gearbox internals and steel driveshafts carrying the power to beefy dBoots Copperhead 2 big block tyres.
ATModels Bench & Track Notes
- This is a genuinely large model. At 771mm long, 602mm wide and 11.2kg before batteries, it needs a decent-sized boot and somewhere open to run. Check your space before ordering.
- Budget for the batteries. Two 4S packs and a charger capable of handling them is a meaningful additional cost, and running it on anything less than the recommended spec will leave performance well short.
- EXB parts are fitted from the factory. On the standard Kraton 8S these are upgrades bought separately, so the EXB version starts where a heavily modified truck would finish.
Specifications
- Part Number: ARA5808V2T1
- Scale: 1/5
- Completion Level: Ready-To-Run (battery and charger not included)
- Drivetrain: Shaft-driven 4WD, mid motor, three differentials
- Motor: Spektrum Firma 5687 1100Kv brushless (56mm)
- ESC: Spektrum Firma 160A V2 Smart
- Servo: Spektrum S6510 steel gear, 820 oz-in at 8.4V
- Radio: Spektrum DX3 3-channel 2.4GHz DSMR with SR6200A receiver and AVC
- Top Speed: 60+ mph / 96+ km/h
- Length: 771mm (30.35 in)
- Wheelbase: 491mm (19.33 in)
- Width: 602mm (23.7 in) front and rear
- Height: 282mm (11.1 in)
- Ride Height: 65mm (2.56 in)
- Weight (no battery): 11.2kg (24 lb 11 oz)
- Tyres: dBoots Copperhead 2 big block
Key Features & In-Depth Engineering
- EXB 7075-T6 Chassis: 5mm laser-etched CNC aluminium plate with aluminium centre braces and composite side pods.
- Heavy-Duty Drivetrain: All-metal differential outdrives and gearbox internals with steel driveshafts throughout.
- 20mm Bore Oil-Filled Shocks: Adjustable, with 6mm shock shafts and ultra-thick composite towers front and rear.
- Easy-Access Motor Mount: Three-bolt sliding mount for quick gearing changes and motor removal.
- EXB Body Finish: Matte-and-gloss EXB scheme, distinct from the standard Kraton range.
What's in the Box?
- (1) Arrma Kraton 8S EXB BLX 1/5 4X4 Monster Truck RTR - ARA5808V2T1
- (1) Factory-fitted Spektrum Firma 5687 1100Kv brushless motor
- (1) Factory-fitted Spektrum Firma 160A V2 Smart ESC
- (1) Factory-fitted Spektrum S6510 steel-gear servo
- (1) Spektrum DX3 2.4GHz transmitter with SR6200A AVC receiver
- (1) Manual and maintenance tools
Needed to Complete
- Batteries: Two 4S (14.8V) LiPo packs, 5000mAh 100C recommended, hard or soft case, maximum 180 x 55 x 53mm.
- Charger: A balance charger able to handle 4S packs of that capacity.
- Transmitter Batteries: (4) AA for the DX3.
- LiPo Safety Bag: Recommended for charging and storage.
