●Ultra-speed servo for instant tail control reaction. (0.05sec/60 deg).
●Ultra Performance Coreless Motor with fast reaction and low current.
●Hardened high strength superalloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 600/700 rudder use.
Specification
●Stall torque:4.5kg.cm(4.8V)
5.5kg.cm(6.0V)
●Motion speed:0.06sec/60°(4.8V)
0.05sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.1 x 20.1 x 37.3mm
●Weight:56g
●1520μs standard band

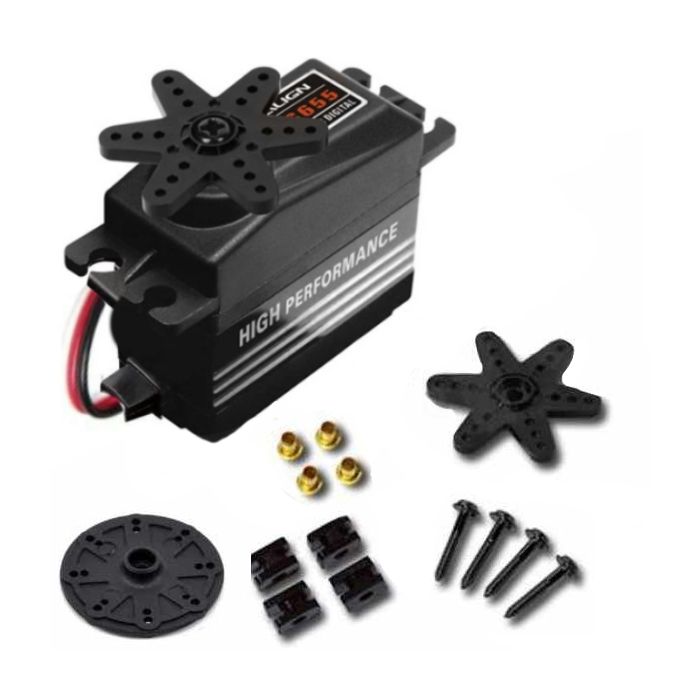

Accessories
●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw × 4(T2.6x12mm)
| LiPo | No |
|---|---|
| Pre Order | No |
| Bundle Avaliable | No |
| Product Code | HSD65501T |
| Discontinued | No |
| EAN / Barcode | 4713413970636 |
| Brand | Align |
| Weight | 0.100000 |
| Product Type | Servos, Standard Servos |
| Colour | Red |
| Torque kg | 3 - 5.9kg |
