GooSky E7 UH-1Y Venom Scale Helicopter ARF Pre-Order Deposit - BNF070002

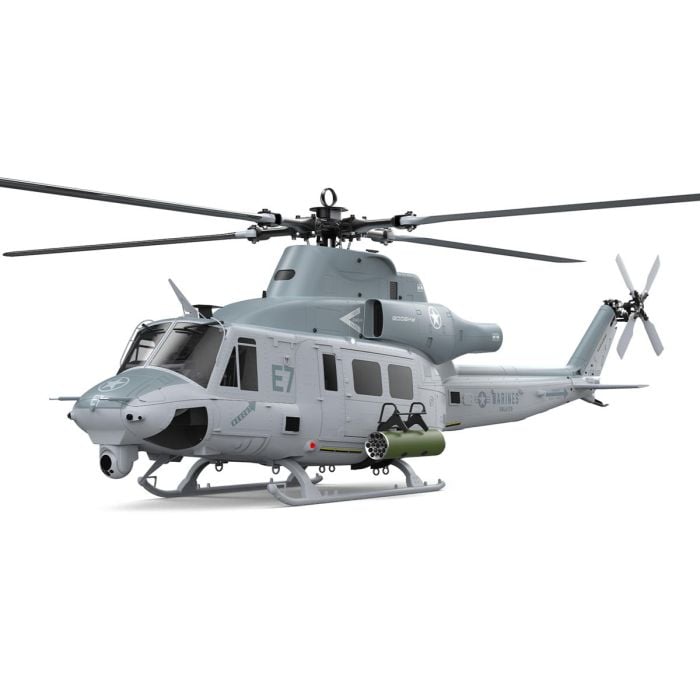

The GooSky E7 UH-1Y Venom Scale Electric Helicopter Kit is a highly detailed, large-scale 1/9 model engineered to replicate the iconic military utility helicopter with exceptional realism. Delivering a commanding flight line presence with its 1562mm main rotor span, this kit combines authentic scale proportions with heavy-duty performance capabilities for advanced builders and scale pilots.

Designed to handle high-power 12S electric power systems, the E7 features a robust airframe, an optimized gear ratio drivetrain, and a smooth belt-driven tail unit. The spacious battery compartment accepts large capacity 12S packs to ensure extended scale flight times and incredible lifting authority.

Key Features

• Authentic 1/9 Scale Replica: True-to-life fuselage lines, rotor proportions, and detailed scale military presence.
• High-Power 12S Capability: Designed for high-voltage setups using 180A–200A ESCs and 450–530kV brushless motors.
• Precision Drivetrain: Durable belt-driven tail system with heavy-duty main and feathering shafts engineered for large-scale stability.
• Large Battery Tray: Spacious compartment accommodating up to 320mm × 50mm × 60mm 12S LiPo setups for extended flight times.
• High Takeoff Capacity: Sturdy airframe rated to handle an 8kg flight weight effortlessly.

Specifications

• Scale: 1/9
• Power Type: Electric (12S LiPo)
• Main Rotor Diameter: 61.5 in (1562mm)
• Tail Rotor Diameter: 11.18 in (284mm)
• Width: 13.86 in (352mm)
• Height: 18.43 in (468mm)
• Total Weight: 17.64 lbs (8kg)
• Battery Tray Dimensions: 320mm × 50mm × 60mm

Includes

• (1) GooSky E7 UH-1Y Venom Scale Electric Helicopter Kit

Required to Complete

• Flybarless System: (1) FBL Control System with built-in or external receiver
• Transmitter: (1) 6+ Channel helicopter-compatible radio system
• Cyclic Servos: (3) Standard-size cyclic servos
• Tail Servo: (1) Standard-size high-speed tail servo
• ESC: (1) 12S Brushless ESC (180A – 200A recommended)
• Motor: (1) 12S 450kV – 530kV brushless motor
• Battery: (1) 12S LiPo battery pack (max dimensions: 320×50×60mm)
• Charger: Compatible 12S LiPo balance charger

Tech Note: This is an unassembled RC helicopter kit requiring full assembly, electronics, radio equipment, and flight batteries. Images of fully assembled model are for illustration purposes only.
