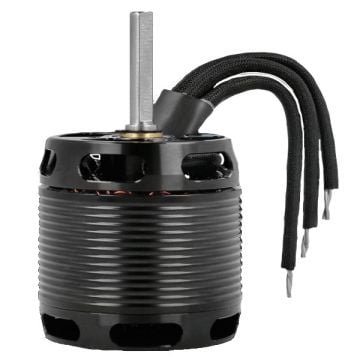

Scorpion HK Limited Edition 4535 Brushless Heli Motor 500kV - HK4535-500

HK4535-500 Limited Edition Scorpion Brushless Motor 8mm Shaft

Scorpion HK-Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

Specification
Stator Diameter....................45 mm (1.77 in)
Stator Thicknessr..................35 mm (1.57 in)
No. of Stator Arms.................12
No. of Stator Poles.................10
Motor Wind...........................5T+4T in double Wye (YY)
Motor Wire............................1-Strand 1.5 mm
Motor Kv...............................500KV RPM/Volt
No-Load Current (Io/10V)........2.06 Amps
Motor Resistance (RM).............0.010Ohms
Max Continuous Current...........100 Amps
Max Continuous Power.............5180 Watts
Weight...................................664 Grams (25.35 oz)
Outside Diameter.....................56.7 mm (2.23 in)
Shaft Diameter........................7.98 mm (0.37 in)
Body Length............................67.0 mm (2.83 in)
Overall Shaft Length.................122.3 mm (5.01 in)
Max Lipo Cell............................14S
Max Peak Current......................150 A (2 seconds)
Max Peak Power .......................7770 Watts (2 seconds)
Motor Timing............................18deg to 24 deg
Drive Frequency........................8kHz
