DYS

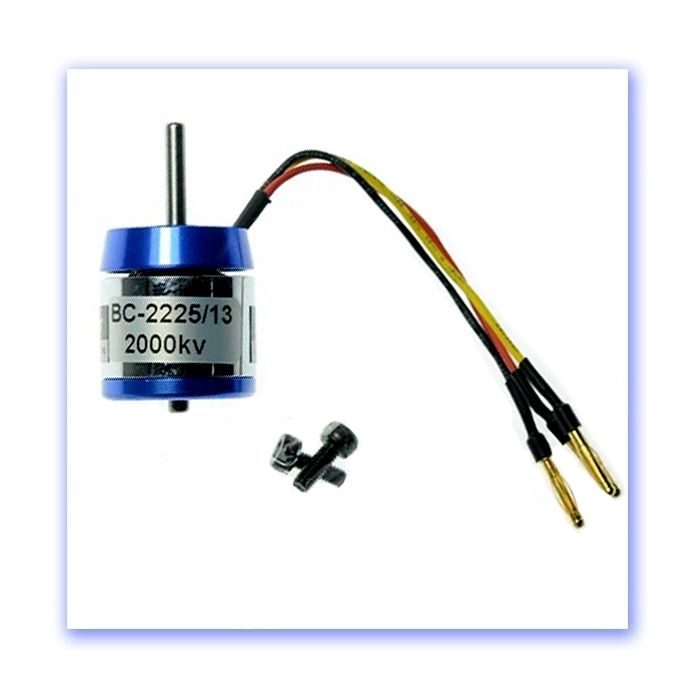

BC2225-13 Brushless Motor 2000kv
In Stock
Bundle Packs
Loading...
Description
This motor has many applications. Due to its higher 2000KV (rPm/V) rating this motor is ideally suited for smaller props up to 7 x 4 on 3S LiPo. Producing up to 120W, this motor is ideal for parkfly and fast sport models weighing up to 1lb/450g depending on model type.
Specification
* Type: BC2225-13
* Class: Brushless
* KV (rpm/V): 2000
* Number of cells: 2/3S LiPo (7.4V/11.1V)
* Maximum Current: 11A (for 30 Seconds)
* Constant current: 8.8A
* Dimensions: Diameter 22mm, Overall Length 41mm inc shaft
* Shaft diameter: 3.17mm
* Weight: 31g
* Recommended ESC: BRC 12A/18A
* Recommended model weight: up to 16oz/450g
* Prop range: 2S APC 6 x 5.5 (75W),3S APC-E 4.75 x 4.75 (118W)
For its size, this is a powerful, fast revving brushless outrunner motor with the ability to swing smaller props making it ideal for fast sport models up to 450g.
Specification
* Type: BC2225-13
* Class: Brushless
* KV (rpm/V): 2000
* Number of cells: 2/3S LiPo (7.4V/11.1V)
* Maximum Current: 11A (for 30 Seconds)
* Constant current: 8.8A
* Dimensions: Diameter 22mm, Overall Length 41mm inc shaft
* Shaft diameter: 3.17mm
* Weight: 31g
* Recommended ESC: BRC 12A/18A
* Recommended model weight: up to 16oz/450g
* Prop range: 2S APC 6 x 5.5 (75W),3S APC-E 4.75 x 4.75 (118W)
For its size, this is a powerful, fast revving brushless outrunner motor with the ability to swing smaller props making it ideal for fast sport models up to 450g.
More Information
| LiPo | No |
|---|---|
| Pre Order | No |
| Bundle Avaliable | No |
| Product Code | 409675 |
| Discontinued | No |
| EAN / Barcode | 9900000845490 |
| Brand | DYS |
| Weight | 0.200000 |
| Product Type | Electric Motors |
| Fuel Type | Brushless Motor |
| KV Rating | 2000Kv-3000kv |
