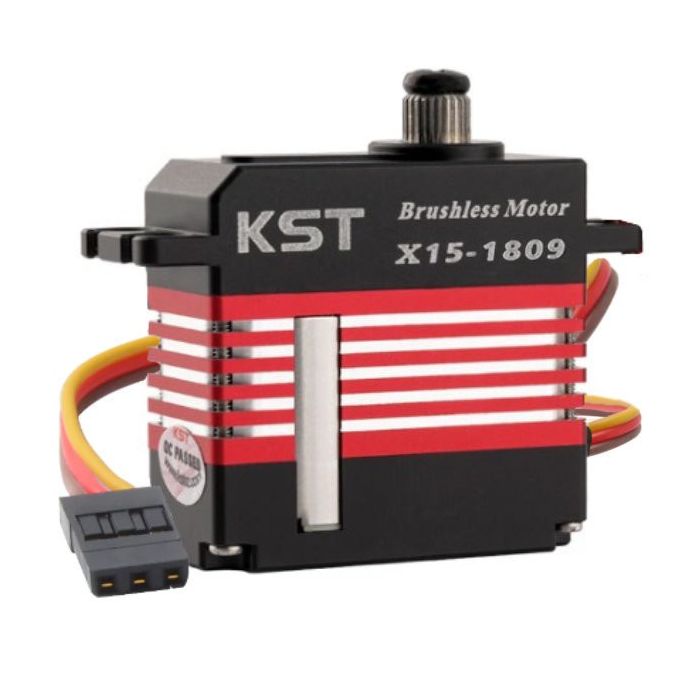

KST X15-1809 Mini size Cyclic Servo 24.47KG 1520us 333Hz 0.07 Sec

X15-1809 Digital Metal Gear Brushless Helicopter Swash Plate Cyclic Servo 24.47KG 1520us/333Hz 0.07 Sec

Feature

• X15-1809 / X15-855X servos are ideal for use in helicopters
• X15-1809 for Helicopter Swashplate, also applicable as elevator and rudder servos for turbine aircraft
• X15-855X for Tail
• Small Size, Colossal Torque
• Precision, high-speed brushless motors
• Support High Voltage 8.4V
• Programmable via programming card

Specification

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 1.8N.m@6.0V/ 2.2N.m@7.4V/ 2.4N.m@8.4V
• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±50° = 100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2 Ball Bearings
• Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
• Speed: 0.09sec/60°@6.0V; 0.08sec/60°@7.4V; 0.07sec/60°@8.4V
• Weight: 45g±10%
