LOGO 690 SX-V2 Kit 02146

Product Code
£679.98 £566.65
  • PayPal
  • Klarna.
  • Braintree
  • Secure Payment Methods

This is the 2020 version with the new angular style canopy.

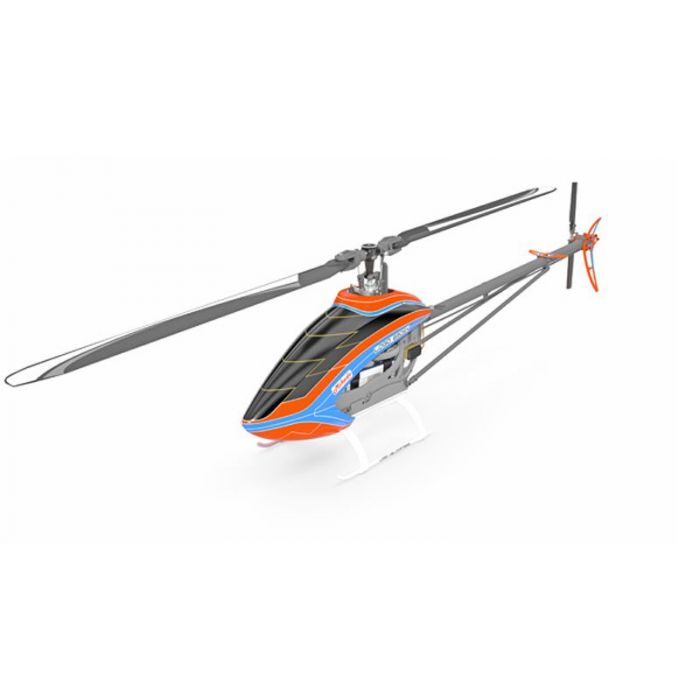

The new LOGO 690 SX from Mikado is a cross-over model, combining the best of 600 and 700 size helicopters. This makes for extraordinary flight performance.

LOGO 690 SX - a 700 size heli with a weight of just 4.8 kg (12S-5,000).

Light and durable chassis fiberglass reinforced frame with battery quick release system.

For 12S Lipo battery, 4,000 mAh to 5,000 mAh.

Aluminum swashplate with new geometry for quicker cyclic response.

Robust tail drive via HTD-belt with aluminum drive pulleys.

Stronger blade grips with Ø5 mm blade grip bolt.

Stronger free wheel for higher torque.

Additional aluminum/carbon battery tray.

Reinforced clamp ring for main rotor shaft.

Herringbone main gear makes for smooth sound.

Extra-stiff carbon tail boom brace.

New airbrushed chassis cover lets you identify the flight attitude of the heli more easily.

Glass-fibre airbrushed canopy with new look.

Specifications Helicopter:

Rotor diameter: 1550mm

Rotor blades: 690mm

RTF weight: 4.8 kg

Recommended battery: 12S Lipo (4000-5000 mAh)

Main gear ratio: 1:7.06

Tail gear ratio: 1:4,76

Main Gear size: 106 Module 1

Battery slot: 58 x 55 x 330 mm

Length: 1340mm

Height: 390mm

Width: 330mm




Anti Static Kit


Illustrated Manual

Main Blades:

Carbon 690 mm

Tail Blades:

Carbon 105 mm

More Information
Product Code02146
Bundle AvaliableNo
Pre OrderNo
EAN / Barcode9900001183232
Model TypeHelicopter
RC Vehicle TypeRC Helicopter
Fuel TypeNo Motor Supplied
Scale700 Class
Build LevelKit Unassembled
Prop and Blade Size651-720mm
