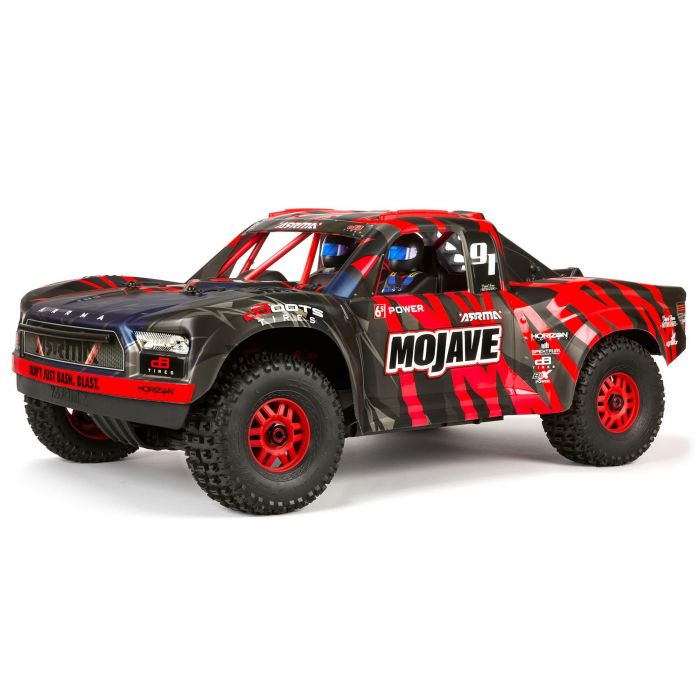

ARRMA 1/7 Mojave 6S BLX 4WD Desert Truck RTR (Red)
Conquer sand dunes, dirt tracks, gravel pits, and rough off-road terrain with the heavy-duty ARRMA 1/7 Mojave 6S BLX Desert Truck. Designed for large-scale desert bashing, this 1/7 scale electric truck combines true scale short-course aesthetic details—including a scale roll cage, inner cockpit, roof rails, and protective nerf bars—with extreme 6S brushless performance. Built on an anodized aluminum chassis equipped with EXB-compatible bracing, steel driveshafts, and oil-filled Big Bore shocks, the Mojave 6S delivers 60+ MPH capabilities, massive suspension articulation, and unmatched durability on aggressive terrain.
Align-Trex Bench & Track Notes
- Dirt Protection: The inner roll cage and scale body do a fantastic job keeping debris out of the chassis. During our off-road testing in damp sand and loose gravel, very little dirt reached the Firma ESC and motor housing.
- Shock Setup: The oil-filled shocks come well-damped from the factory for large scale jumps. If you frequently jump off high ramps, stepping up shock oil viscosity by +50cSt gives a bit more bottom-out protection without sacrificing small-bump traction.
- Body Care & Maintenance: Because the body wraps closely around the inner roll cage, applying drywall tape and shoe goo to the inside body contact points prevents body shell rub-through during long sessions of heavy bashing.
Key Features & In-Depth Engineering
- Scale Desert Truck Chassis Architecture: Features a 3mm anodized aluminum chassis plate protected by composite side pods, front/rear skid plates, flexible front bumper valance, and integrated nerf bars for side-impact protection.
- Spektrum Smart Electronics Suite: Powered by a Spektrum Firma 4074 2050Kv 4-pole brushless motor and a Spektrum Firma 150A Smart ESC with built-in telemetry support. Upgraded with the Spektrum S652 high-torque digital steering servo (19.08 kg-cm @ 7.4V) for fast, authoritative steering response under load.
- Long-Travel Independent Off-Road Suspension: Heavy-duty composite suspension arms fitted with red-anodized aluminum strengthening caps and long-travel oil-filled aluminum shocks soak up huge air landings, washboard terrain, and deep rut impacts.
- dBoots Fortress Multi-Terrain Tires: Aggressive dBoots Fortress treaded tires mounted on scale multi-spoke split wheels with +1mm wheel hexes offer exceptional traction across dirt, sand, grass, and pavement.
- Quick-Service Driver Design: Designed for minimal pit maintenance featuring a sliding aluminum motor mount for quick gear mesh setting and a 5-bolt center differential removal system.
- Spektrum SLT3 2.4GHz Radio System: Includes a Spektrum SLT3 3-channel radio with a 3-position throttle limiting switch (50%, 75%, 100%), paired with a dual-protocol SR315 receiver for reliable control.
Technical Specifications
- Scale / Type: 1/7 Scale 4WD Electric Off-Road Desert Truck
- Completion Level: Ready-To-Run (RTR)
- Part Number: C-ARA7604V2T2
- Color Option: Red & Black Race Graphics
- Length: 715mm (28.15")
- Width: 355mm (13.98")
- Height: 269mm (10.59")
- Wheelbase: 420mm (16.54")
- Ground Clearance: 47mm (1.85")
- Weight: 5.4 kg (11.88 lbs)
- Top Speed: 60+ MPH (achievable on 6S LiPo with included optional speed pinion)
- Drivetrain: Shaft-Driven Full-Time 4WD (3 Metal Gear Differentials)
- Gear Pitch: 1.0MOD
- Chassis Plate: Anodized Aluminum with EXB-Compatible Center Bracing
- Shocks: Long-Travel Aluminum Body Oil-Filled Coilovers
- Motor: Spektrum Firma 4074 2050Kv Sensorless Brushless
- ESC: Spektrum Firma 150A Smart Waterproof ESC (IC5/EC5 Connectors)
- Steering Servo: Spektrum S652 Steel-Gear Digital Waterproof Servo (19.08 kg-cm @ 7.4V)
- Radio System: Spektrum SLT3 3-Channel 2.4GHz Transmitter with SR315 Receiver
- Wheel Hex Size: +1mm Heavy-Duty 17mm Hexes
What's in the Box?
- (1) ARRMA 1/7 Mojave 6S BLX 4WD Desert Truck (Red) - C-ARA7604V2T2
- (1) Factory-Installed Spektrum Firma 150A Smart Waterproof ESC
- (1) Factory-Installed Spektrum Firma 4074 2050Kv Brushless Motor
- (1) Factory-Installed Spektrum S652 Digital Steel-Gear Servo
- (1) Spektrum SLT3 2.4GHz 3-Channel Transmitter with SR315 Receiver
- (1) Optional Speed Pinion Gear
- (1) Product Manual & Maintenance Tool Set
Needed to Complete
- LiPo Batteries: (2) 2S (7.4V) or (2) 3S (11.1V) Hardcase LiPo Batteries with IC5 or EC5 connectors (Minimum recommended spec: 5000mAh 50C+).
- LiPo Charger: Compatible Smart balance charger with IC5/EC5 charge cables.
- Transmitter Batteries: (4) AA batteries for the Spektrum SLT3 transmitter.
- LiPo Safety Bag: Recommended for safe LiPo charging and storage.
