EgoDrift Tengu 4525HT / 530kv The Jason Russell Edition Brushless Motor
Ships 1-2 Days
- Product Code
- 11938
£339.98
Excl. Tax: £283.32
Excl. Tax:
Quick Overview Egodrift Tengu 4525HT / 530KV The Jason Russell Edition Brushless Motor
Description
Overview

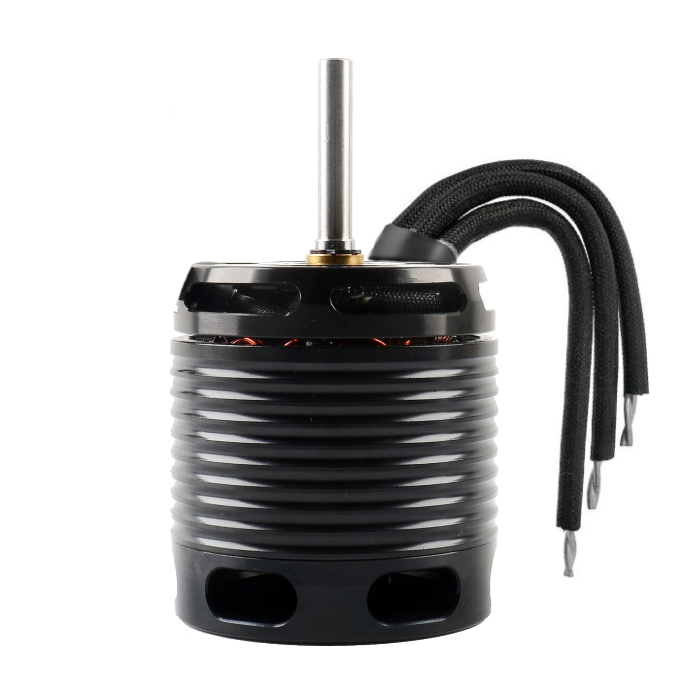

Hand-wound EGODRIFT Tengu 4525HT (High Torque) Series 530kV brushless motor for lightweight 700 class helicopters, such as the XLPower Specter NME Edition, SAB Goblin Raw 700, Tron 7.0, OXY Flash and others.
What’s in the box
- 1x Tengu 4525 HT Series/530kV motor
- 35mm exterior length shaft
- 3 x Gold plated connectors, Male
- 3 x Gold plated connectors, Female
- 4 x Mounting screws
- 1 x Bell securing screw
The all new Jason Russell Edition with 530kV fllls the gap between the existing 510 and 550kV options and with its low weight of only 470g and the ability to be ran on 130A speed controllers, plays perfectly into the trend of lightweight 700 performance machines. Ideal for those 9.5 to 10.0 gear ratios and recommended to be ran on a 9 degree fixed timing for the best efficiency (other timing options and gearings will work as well, of course).
- Manufacturer: EGODRIFT
- Stator size: 4525
- Motor configuration: 12N10P
- Motor weight: ~470g (16.58oz)
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor kV: 530 kV
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- Mounting hole pattern: 4xM4(30)
- Laser Design: EGODRIFT Stickerbomb
- LiPo cells: 12S, 14S
- Stator diameter: 45 mm
- Stator height: 25 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 66.58mm (2.19 inch)
- Diameter: 56.40 mm (2.22 inch)
- Idle current: 3.6A
- Maximum Current: 135A (Peak: 240A / 2 seconds)
- Maximum Power: 6400W (Peak: 11500W / 2 seconds)
- Internal resistance: 12 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
More Information
| LiPo | No |
|---|---|
| Pre Order | No |
| Bundle Avaliable | No |
| Product Code | 11938 |
| Discontinued | No |
| EAN / Barcode | 11938 |
| Brand | Egodrift |
| Weight | 0.600000 |
| Product Type | Brushless Motor |
| KV Rating | Under 600Kv |
| Motor Size | 4525 |
