The long awaited Mikado RC Helicopter Radio contriol Transmitter is now back, boosting a new name called the EVO , with a new faster setup , latest software and Hardware. Born the new EVO which everyone has been waiting for. Along with the transmitter the new EVO flybaless unit, now even more locked in and some say 4 times faster in response to the older NEO.

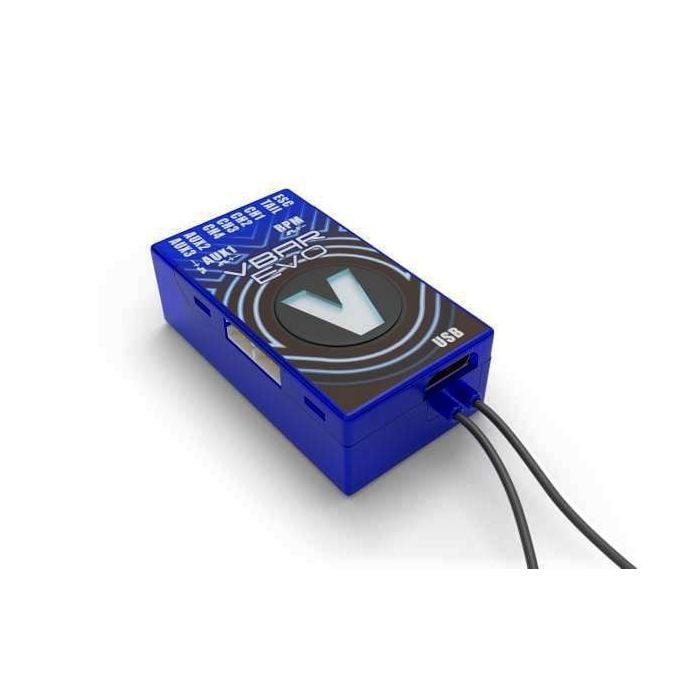

Mikado EVO Vbar VLink Express Flybarless Unit
- Product Code
- MIK05539
Description
Mikado VBar EVO Highlights
New processor: 500 MHz (NEO: 98 MHz), more memory, FPU, highest available computing power on the market to this date
Innovative step-up/step-down voltage supply from 2 V up to 16 V at full power with high efficiency (less excess heat)
Full telemetry and range down to 2 V supply voltage
Improved high frequency technology for high power and sensitivity
Double sensor system using tried and tested technology and new sensors
The hardware allows for new specs:
Frame rates adjustable up to 1 kHz (1 ms) on the swash plate and 0.5 ms on the tail
ESC frame rate up to 1 KHz
Pulse width selecable between 1.5 ms down to 125 µS as well as digital high speed protocols
Improved algorithms: adjusted tot he new frame rates, new optimized digital filtering
Dynamic swash plate rotation (per bank)
New „Tail Torque Extension“ for motor driven tails, more control when the tail rotor is unloaded
More Information
Product Code | MIK05539 |
---|---|
Bundle Avaliable | No |
LiPo | No |
Pre Order | No |
Discontinued | No |
EAN / Barcode | 4033912055390 |
Brand | Mikado |
Weight | 0.300000 |
Product Type | Flybarless unit |
