Description

Following the successful release of the T-REX 450L, which had introduced an innovative design and featured high-end electronic components, Align had a significant anticipation building for their next offering in 2016 - the T-REX 470L. Regardless of whether you were a novice helicopter pilot or a seasoned professional, Align promised that the new T-REX 470L would rejuvenate your flying experience with its advanced features and capabilities.

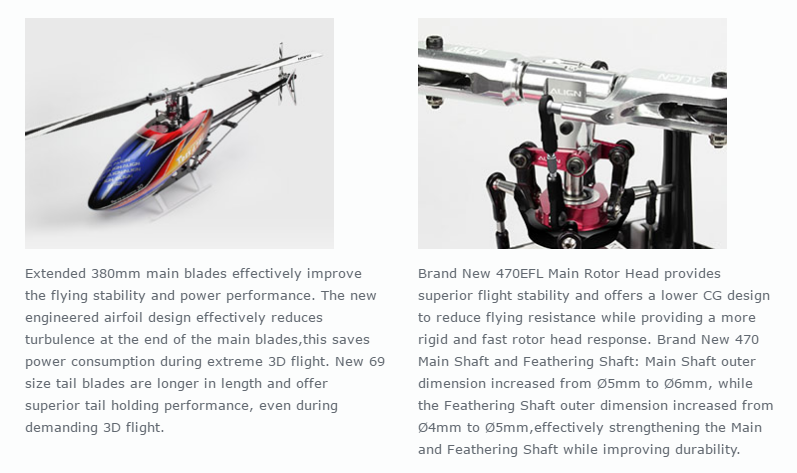

One of the standout features of the T-REX 470L is the 470EFL Main Rotor Head, which not only provides superior flight stability but also incorporates a lower center of gravity (CG) design to reduce flying resistance. This lower resistance leads to a more rigid and faster rotor head response, enabling pilots to execute maneuvers with precision and finesse.

In an effort to improve the strength and durability of the helicopter's main and feathering shafts, Align increased the outer dimension of the 470 main shaft from Ø5mm to Ø6mm, and the feathering shaft from Ø4mm to Ø5mm. This enhancement ensures that the T-REX 470L can withstand the rigors of intense 3D flying and aerobatics.

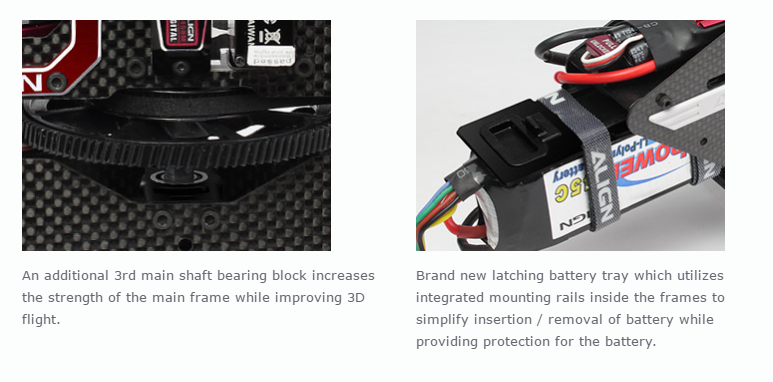

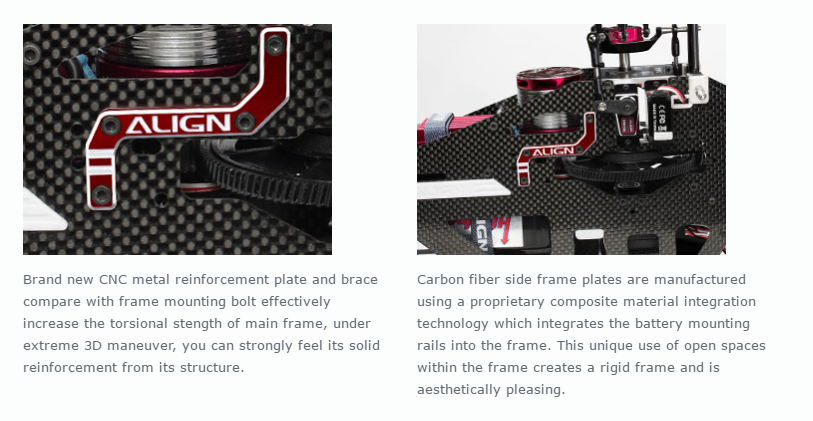

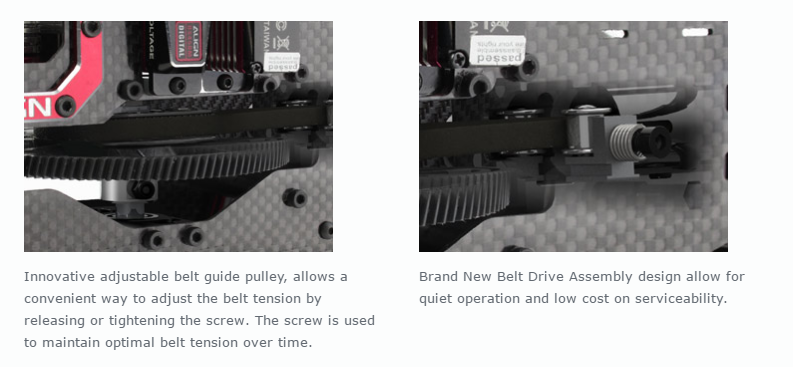

The 470L boasts a high standard 1.2mm 3K carbon fiber main frame, which not only adds to its robustness but also features a wider body design. This design choice increases the size of the battery compartment, allowing for the use of larger capacity batteries. With more power capacity, pilots can enjoy longer flight times and more ambitious flying routines. The helicopter also features a high-efficiency belt drive assembly design with an innovative adjustable belt guide pulley. This innovation makes it convenient for pilots to adjust the belt tension by simply releasing or tightening a screw. Properly maintained belt tension not only enhances flight performance but also prolongs the life of the belt, thus reducing maintenance costs.

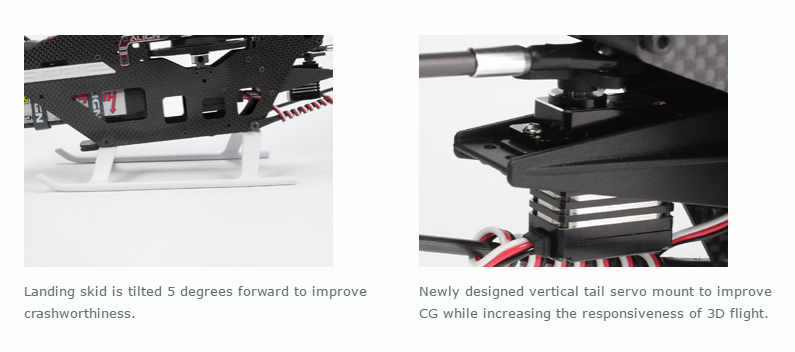

Additionally, Align tilted the landing skid on the T-REX 470L by 5 degrees forward, improving its crashworthiness while giving it a more avant-garde and dynamic appearance. This design ensures that the helicopter can handle rough landings and impacts with more resilience.

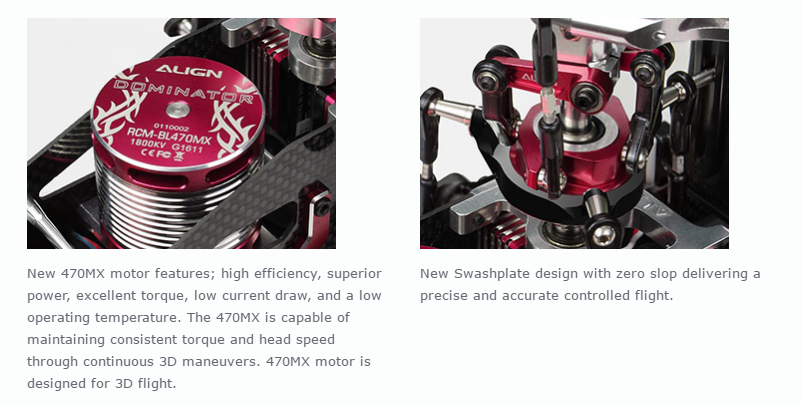

The heart of the T-REX 470L is its powerful 470MX motor (1800KV), which is known for its high efficiency. This motor delivers superior power, excellent torque, improved current draw, and operates at a lower temperature compared to the 460MX motor. These improvements result in enhanced overall performance and a more satisfying flying experience.

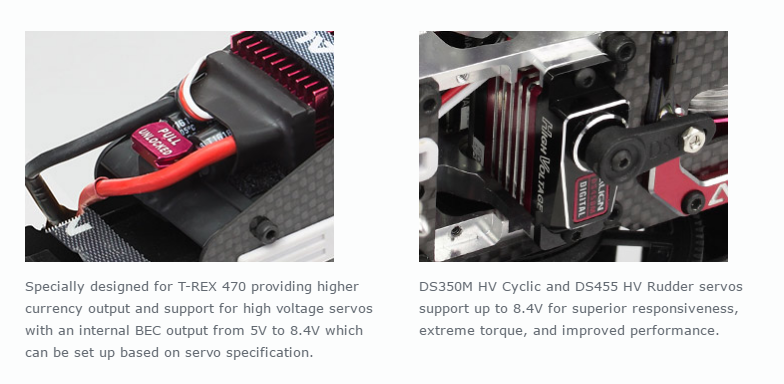

To further enhance the helicopter's capabilities, the T-REX 470L is equipped with the brand new DS450 digital cyclic servos and DS455 digital tail servo. These servos support a wide voltage range up to V8.4, allowing for increased torque and speed. This is particularly crucial for precise and responsive control during various flight maneuvers.

The helicopter's electronics have not been overlooked either. The new RCE-BL50X brushless ESC features an internal BEC (Battery Eliminator Circuit) that provides a voltage range from 5.0V to 8.4V, which can be adjusted based on the specifications of the servos in use. This intelligent electronic setup ensures that the T-REX 470L operates at peak performance levels, making it a top choice for helicopter enthusiasts seeking an outstanding and exhilarating flying experience.

Specification

  • Length: 755mm
  • Height: 210mm
  • Width: 108mm
  • Main Blade Length: 380mm
  • Main Rotor Diameter: 850mm
  • Tail Rotor Diameter: 181mm
  • Motor Pinion Gear: 11T
  • Main Drive Gear: 121T
  • Autorotation Tail Drive Gear: 104T
  • Tail Drive Gear: 28T
  • Drive Gear Ratio: 11:1:3.71
  • Weight(w/o battery): Approx. 871g

Accessories (Included):

  • T-REX 470L DOMINATOR Set x 1
  • 69 Tail Blade x1set

Options (Configurable items):

  • 380 Carbon Fiber Blades x 1set
  • 470MX Brushless Motor(1800KV/2818) x 1
  • DS450M Digital Servo x 3
  • DS455M Digital Servo x 1
  • RCE-BL50X 50A Brushless ESC x 1

Radio transmitter and electronic equipment required for assembly:

  • Transmitter(6-channel or more,helicopter system)
  • Receiver(6-channel or more)
  • Pitch gauge or Digital Pitch Gauge
  • 6S Li-Po 1400~1900mAh battery x 1
More Information
Product CodeRH47E01XT
Bundle AvaliableYes
LiPoNo
Pre OrderNo
DiscontinuedNo
EAN / Barcode4713413998104
BrandAlign
Weight5.000000
Product TypeHelicopter
skill levelsAdvanced
Model Type450 Class Helicopter
RC Vehicle TypeRC Helicopter
Fuel TypeBrushless Motor
Scale450 Class
Build LevelKit Unassembled
ColourBlue
Prop and Blade Size301-380mm
