Futaba CGY760R 3-Axis Helicopter Gyro T-FHSS/FASSTest Rx and Governor FUT05102651-3

Ships 1-2 Days

Product Code: FUT05102651-3

RRP £340.00

£272.89

Excl. Tax: £227.41

Call Us at (+44) 01753-694-171

Email Us at sales@align-trex.co.uk

Found it cheaper? Request price match!

Description

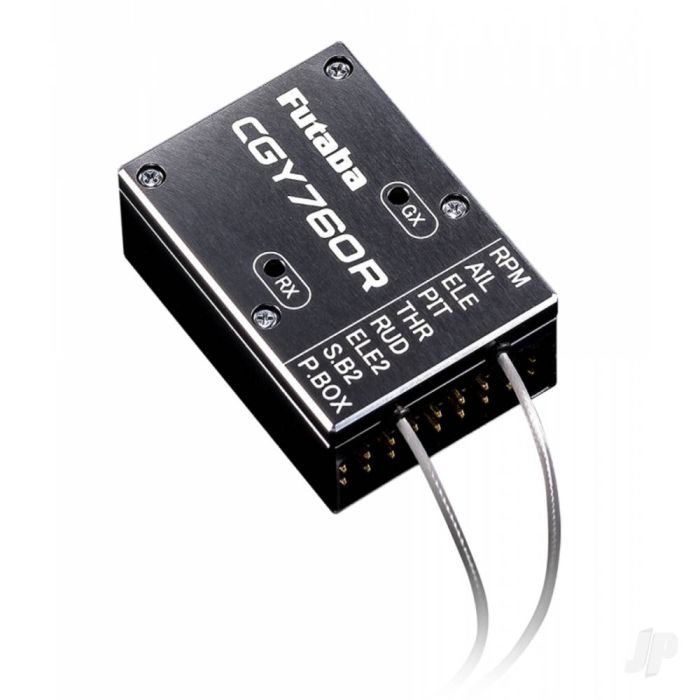

The Futaba GY760R contains an extremely precise 3-axis heading hold gyro, a (T-FHSS/FASSTest) receiver and head speed governor for use in high performance RC helicopters. As an all in one unit, the GY760R is easy to install, and keeps wiring to a minimum. This allows a neater installation, whilst the simplicity and reduction in part count reduces the possibility of errors or failures. The GY760R is programmed using the dedicated GPB-1 programming unit (sold seperately) either by connecting it directly to the programming port or alternatively connecting it to the trainer port on your transmitter to enable an assistant to make changes wirelessly as you fly, dramatically reducing the time it takes to fine tune your model.

andbull; Combined receiver, governor and 3-axis heading hold gyro
andbull; Easy to install and simple to connect
andbull; Compact and light weight package
andbull; The case is made from aluminium with a high quality anodic oxidation coating finish
andbull; Screw holes in the base of the unit allow simple and secure installation
andbull; To take advantage of the free firmware updates a CIU-2 or CIU-3 is required (sold separately)

Gyro Section
andbull; Advanced and adaptive PID control loop (as used in the CGY750 V2.0)
andbull; The GY760R can be installed in various orientations as required
Rudder (Yaw)
andbull; Suited to both Digital (1520uSec / 760uSec) and Analogue (1520uSec) servos
andbull; 3D and Sports modes available
Aileron (Roll) andamp; Elevator (Pitch)
andbull; F3C and 3D modes available
andbull; Supports H3-90 / H3-120 / H3-140 / H4-00 / H4-45 swashplate types
andbull; Suited to both Digital (1520uSec) and Analogue (1520uSec) servos
(* 760uSec digital will be enabled in the future)

Head Speed Governor
andbull; Advanced and adaptive PID control loop (as used in the CGY750)
andbull; Capable of governing head speeds from 700 to 4,000 rpm
andbull; Suited to both Digital (1520uSec) and Analogue (1520uSec) servos
andbull; Governor or Revolution limiting modes available
andbull; Cutting edge control algorithm provides more consistent RPM governing
andbull; Revolution sensor is compatible with the GV-1 and CGY750. The CGY760R also supports an
optional back plate revolution sensor
andbull; RPM data can be sent back to the transmitter as a telemetry function

Receiver Section
andbull; FASSTest (18ch or 12ch mode) and T-FHSS Air transmission modes can be used (selectable using GPB-1)
andbull; Diversity aerial (2 aerials are installed for improved signal security)
andbull; Telemetry functions (Battery voltage, S.BUS sensor connected to S.BUS2 port and RPM data)
