DS830M High Voltage Brushless Servo (Unboxed) HSD83001-unboxed
●Designed specifically for helicopters,utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
●The drive gears are made of hardened steel and have improved machining accuracy, allowing for precise and seamless gear engagement with minimal clearance. The gear surface is wear-resistant, with low clearance and a long service life.
●Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
●Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.
●Designed specifically for helicopters, with highest specifications on the market: 0.055sec/60°ultra fast speed and 23kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
●Ultra high signal resolution for excellent precision and smoothness.
●Supports both analog and digital control signals.
●Suitable for TB70 Elevator Servo, TN70 Elevator/Aileron/Pitch Servo.
●Stall torque: 22kg.cm(7.4V)
●Stall torque: 23kg.cm(8.4V)
●Motion speed: 0.060sec/60°(7.4V)
●Motion speed: 0.055sec/60°(8.4V)
●Rating voltage: DC 7.0-8.4V
●Temperature range: -20°C ~ +60°C
●Line length: 140mm
●Dimension: 40 x 20 x 39mm
●Weight: 80g

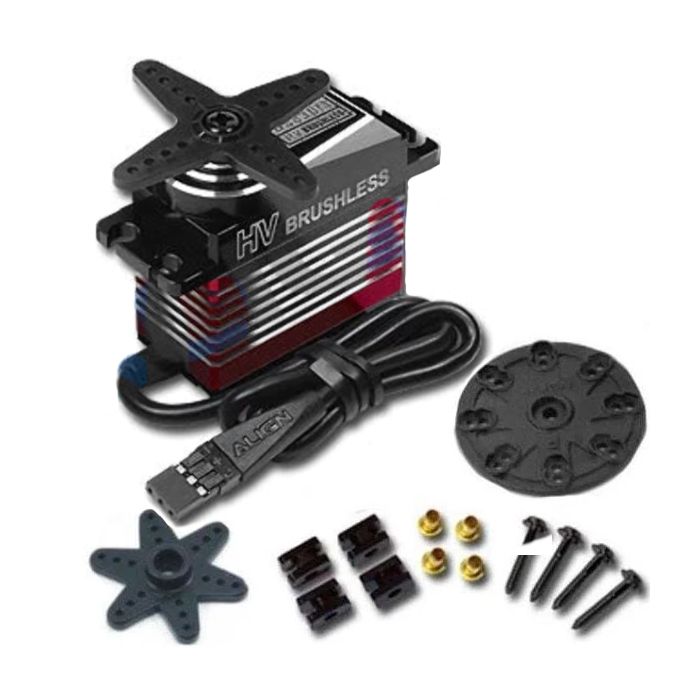

Contents:
●DS830M High Voltage Brushless Servo x 1
●Servo Arm x 1
●DS615/655 Servo Arm Set x 1
●DS615/655 Rubber Group x 1 (Square rubber x 4/washer x 4/screw x 1)
●Socket Botton Head Screw x 4(M2.5x10mm)
| Product Code | HSD83001-unboxed |
|---|---|
| Bundle Avaliable | No |
| LiPo | No |
| Pre Order | No |
| Discontinued | No |
| EAN / Barcode | 9900001353482 |
| Brand | Align |
| Weight | 0.300000 |
