KST

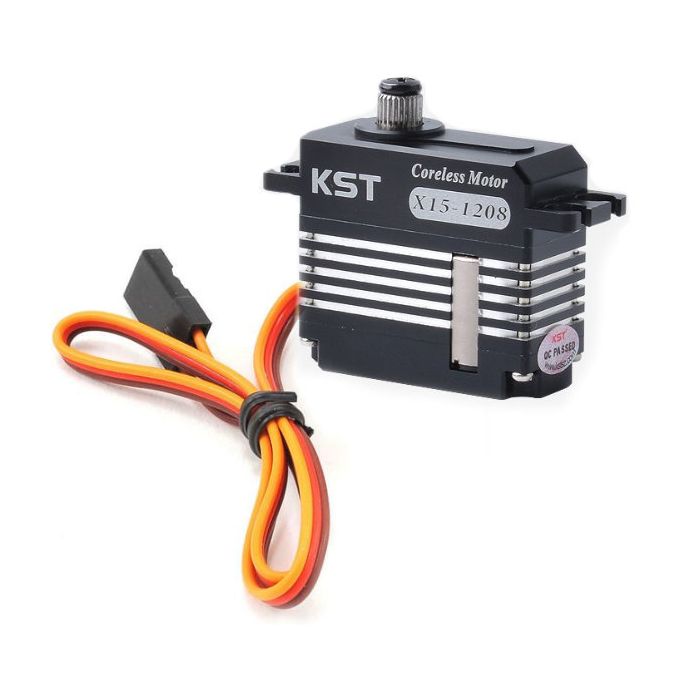

KST X15-1208 Mini Digital Coreless Metal Geared Servo 13.5kg/cm@8.4V KST-0301
In Stock
- Product Code
- KST-0301
£82.90
Excl. Tax: £69.08
Excl. Tax:
Quick Overview KST X15-1208 13.5kg/cm@8.4V
Description
| KST X15-1208 Specifications | ||
|---|---|---|
| Body dimensions | 35.5 mm wide x 15.0 mm thick x 32.0 mm high | 1.40" wide x 0.59" thick x 1.26" high |
| Max dimensions | 47.5 mm wide x 15.0 mm thick x 38.0 mm high | 1.87" wide x 0.59" thick x 1.50" high |
| Stall torque / Speed @ 6V | 9.8 kg.cm / 0.10 s/60° | 136 oz.in / 0.10 s/60° |
| Stall torque / Speed @ 7.4V | 12.0 kg.cm / 0.08 s/60° | 167 oz.in / 0.08 s/60° |
| Stall torque / Speed @ 8.4V | 13.5 kg.cm / 0.07 s/60° | 187 oz.in / 0.07 s/60° |
| Weight | 43.0 g | 1.52 oz |
| Lead length | 29 cm | 11.5 in |
| Operating Voltage | 6.0V - 8.4V | |
| Bearings | 2 ball bearings | |
| Gear material | Hardened steel | |
| Case material | Aluminium alloy | |
| Motor type | Coreless DC motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 2 µs | |
| Pulse width for ± 60º | 900 - 2100 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position sensor | Potentiometer | |
| Operating temperature | -20 to +65 ºC | |
| Supplied accessories | 2 strong plastic output arms, 2 arm retaining screws, 4 mounting screws, 4 bushes, 4 rubber mounting grommets | |
More Information
| Product Code | KST-0301 |
|---|---|
| Bundle Avaliable | No |
| LiPo | No |
| Pre Order | No |
| Discontinued | No |
| EAN / Barcode | 4897073541181 |
| Brand | KST |
| Weight | 0.010000 |
| Product Type | Servos, Mini Servos |
| Colour | Red |
| Torque kg | 12 - 14.9kg |
